Main / Catalog / Night Vision Monoculars / NV 5x60 Yukon Night Vision Monocular 1st Gen. II Tube

Our price: $ 321.00
Larger photo
Larger photo Larger photo

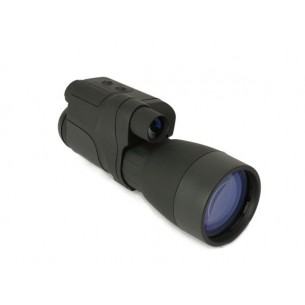

The Yukon NV 5x60 Night Vision monocular is remarkable for its high light-gathering capacity and stunning high power magnification that far surpasses the capabilities of standard night vision devices. Due to a the large optical diameter of the objective lens (60mm) and enhanced contrast transfer function, the images produced by the NV 5x60 are is bright and crisp with a resolution of around 40 lines/mm.

The figure of the visual magnification ─ 5 power  ─  is one of the most impressive among gen.1 night vision devices. The housing of the unit is made of highly durable plastic.

Efficient internal arrangement of parts and components contribute to an optimal weight-dimensions ratio. The NV 5x60 is equipped with a built-in IR illuminator for observing images in complete darkness and also when there are insufficient levels of natural illumination at night (to increase quality and range of observation). The NV 5x60 is also tripod adaptable, convenient for long-term observation.



Yukon NV 5x60 Night Vision Monocular Features

  • Bright and crisp images
  • Highly durable plastic casing
  • Tripod-adaptable, convenient for long-term observation
  • Water- and fog-resistant ideal for travel and outdoor use
  • 300m viewing range ideal for various activities



See detailed specification and operation manual here: manual_nv_5x60_eng.pdf



Technical specifications:

Generation

1

Visual Magnification, x

5

Objective Lens, mm

60

Resolution, lines/mm

40

Angular Field Of View

12°

Viewing Range*, m

300

Eyepiece Adjustment, dptr.

+/- 5

Operating Voltage, V

3

Built-in IR Illuminator, m

100

Tripod mount, inch

1/4

Operating Time, hour

20

Temperature Range

-25°C ~ +40°C

Maximum Humidity, %

93

Grade of water-resistance

IPX3

Length, inch/mm

8.1/206

Width, inch/mm

2.7/70

Height, inch/mm

3.7/93

Weight, oz/kg

23.2/0.66
