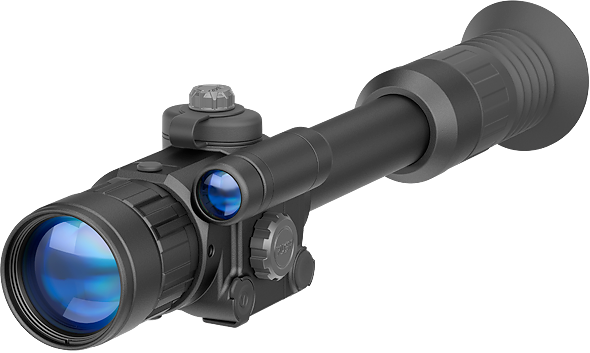

Main / Catalog / Night Vision Rifle Scopes / Photon XT 4.6x42L Digital Rifle Scope
- Day and night use
- Large caliber shockproof
- Selectable integrated electronic reticles
- Mounting with standard 30 mm rings
- Safe eye relief
- Built-in eyesafe laser IR illuminator
- Effective for the use with invisible IR illuminators
- Compact and lightweight
- Easy operation
- Video out
-
Day & night use
The Photon XT night vision riflescopes can be activated and used in the daylight without the fear of being damaged immediately or in the long run.
-
Selectable reticles
A reticle is electronically displayed on the screen and is permanently located in the plane of target image. The Photon XT’s internal memory contains 6 reticles of various shapes and applications in 3 colors.
-
Eyesafe eye relief
The Photon XT riflescopes feature a 60 mm eye relief – one of the best parameters in its class. The greater is the eye relief the less traumatic is the use of the scope, especially on hunting weapons with considerable recoil.
-
High shock resistance
The Photon XT riflescopes feature high shock resistance and can be used with rifled hunting weapon for such cartridges as 9.3х64, .30-06, .300, .375. etc, and with smooth-bore and airsoft weapon.
-
Easy mounting on a rifle
The middle part of the Photon XT body is a 30 mm tube, standard for daylight optical sights, which enables the Photon to be mounted on various types of hunting weapons using proven solutions.
-
Effective use with “invisible” IR illuminators
As opposed to tube-based devices, digital NV equipment feature advanced efficiency when used with IR Illuminators working in long wave range (more than 900 nm) and invisible by the naked eye.
-
Video out
The Photon XT riflescopes are equipped with a Video Out jack enabling real time video recording with the use of external recording equipment.
-
Easy to operate
Photon XT riflescope is easy to operate – majority of operations (device activation, menu settings and navigation) are performed with one encoder-wheel.
-
Compact and lightweight
Being an electronic and optic night vision riflescope Photon XT has the weight and size of an ordinary day riflescope.
- Riflescope Photon XT
- Carrying case
- Video Cable
- Cleaning cloth
- Warranty card
Sensor Type |
CMOS |
Camera resolution, pixels |
656х492 |
Display type |
LCD |
Display Resolution, pix. |
640x480 |
Magnification, x |
4.6 |
Lens diameter, mm |
42 |
Field of View, degree |
4.3 |
Eye Relief, mm |
60 |
Exit Pupil, mm |
5 |
Diopter adjustment, dptr. |
±5 |
Resolution, lines per mm |
38 |
Minimum focusing distance, m |
10 |
Range of detection, m (object 1,7m high, illumination level 0,05 lux ("quarter moon") |
170 |
Emitter |
Laser |
IR Wavelenght, nm |
780 |
Equivalent IR Power, mW |
125 |
Windage & Elevation, 1 click, mm / 100m |
25/ 25 |
Max. windage/elevation adjustment range, clicks |
1500/ 1500 |
Mounting brackets on weapon |
30 mm rings |
Shock Resistance (when used with rifled gun), E0, joules |
6000 |
Power supply, V |
2.0 - 3.3 V |
Battery Type |
2 x LR6 (АА) |
Operating Temperature, °C |
-15…+50 |
Level of Protection (acc. to IEC 60529) |
IPX4 |
Video Out |
yes |
Dimensions, mm |
398x75x80 |
Weight, kg |
0.62/ 0.67 |
