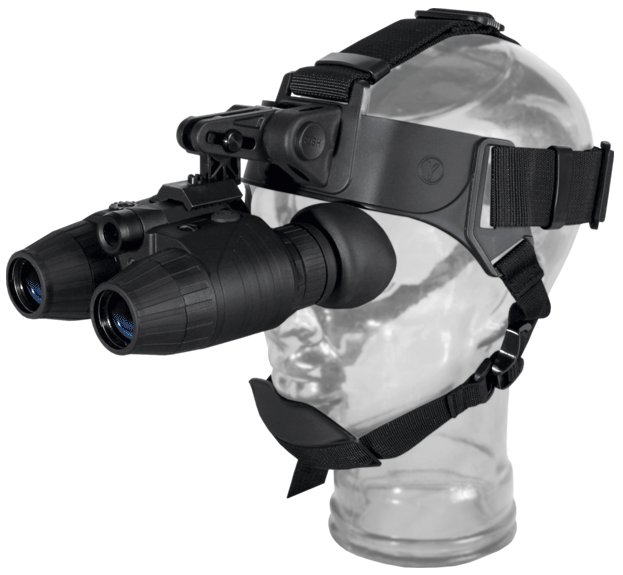

Main / Catalog / Night Vision Goggles / NV Goggles Edge G2+ 1x21

Our price: $ 4490.00
Larger photo

Specifications

Magnification: 1x
Generation: 2+
Field of view: 40°
Minimum focussing range: 20 cm
Weight: 850 g

What's in the box

NVB Edge G2+ 1x21 | Head mount | Carrying case | User manual | Lens cloth | Guarantee card

MANUAL (PDF)

Effective field of view

High resolution and geometric image precision provided by CF-Super based NV devices provides effective observation of an object located in any part of unit’s field of view. Majority of Gen. 1 devices features decent image quality only in the centre of the imaging area.

Constant image quality across the whole field of view

CF-Super’s resolution is notable for its consistency (resolution difference between the centre/edge does not exceed 20%, whilst centre/edge resolution ratio for Gen.1 units is more than five times.

Tube protection

The Edge GS 1x20 features an image intensifier tube protection system – once the luminance threshold level is exceeded, current feed to the tube is automatically reduced or fully ceased. This allows the user to reach the highest possible tube performance.

Built-in wide-angled IR illuminator

The Edge night vision goggles are equipped with an energy-conserving wide-angled IR illuminator with a gradual power adjustment function.

Eyepiece

The Challenger & Edge are outfitted with a new five-lens eyepiece that minimizes distortion across the edges of the field of view and increases image sharpness and contrast. A soft rubber eyecup conceals the light emission from the tube thus permitting a user to stay unnoticed.

Controls

The Edge night vision binoculars are easy in operation. The device and IR illuminator are switched by pressing buttons (ON and IR respectively) located on the top of the body. Additionally, the Edge binoculars & goggles are equipped with a gradual IR illuminator power adjustment function.

Tube
Image tube type EPM207G-2*
Generation 2+
Optical characteristics
Magnification, x 1
Objective lens, mm 21
Resolution, lines per mm 40
Angular field of view, degree 40
Eyepiece adjustment, diopter ±4
Min. Focusing Distance, m 0.2
Eye relief, mm 25
Built-in IR-illuminator
IR Wavelength, nm 805
Equivalent IR Power, mW 30
Range of observation
Max. detection range, m 200
Power Supply
Operating voltage, V 3 (2хAAA)
Physical & operational characteristics
Dimensions, mm 163x113x60
Weight of the unit, kg 0.65
Weight of the head mount, kg 0.2
Operating temperature, °C -20 ... +40
